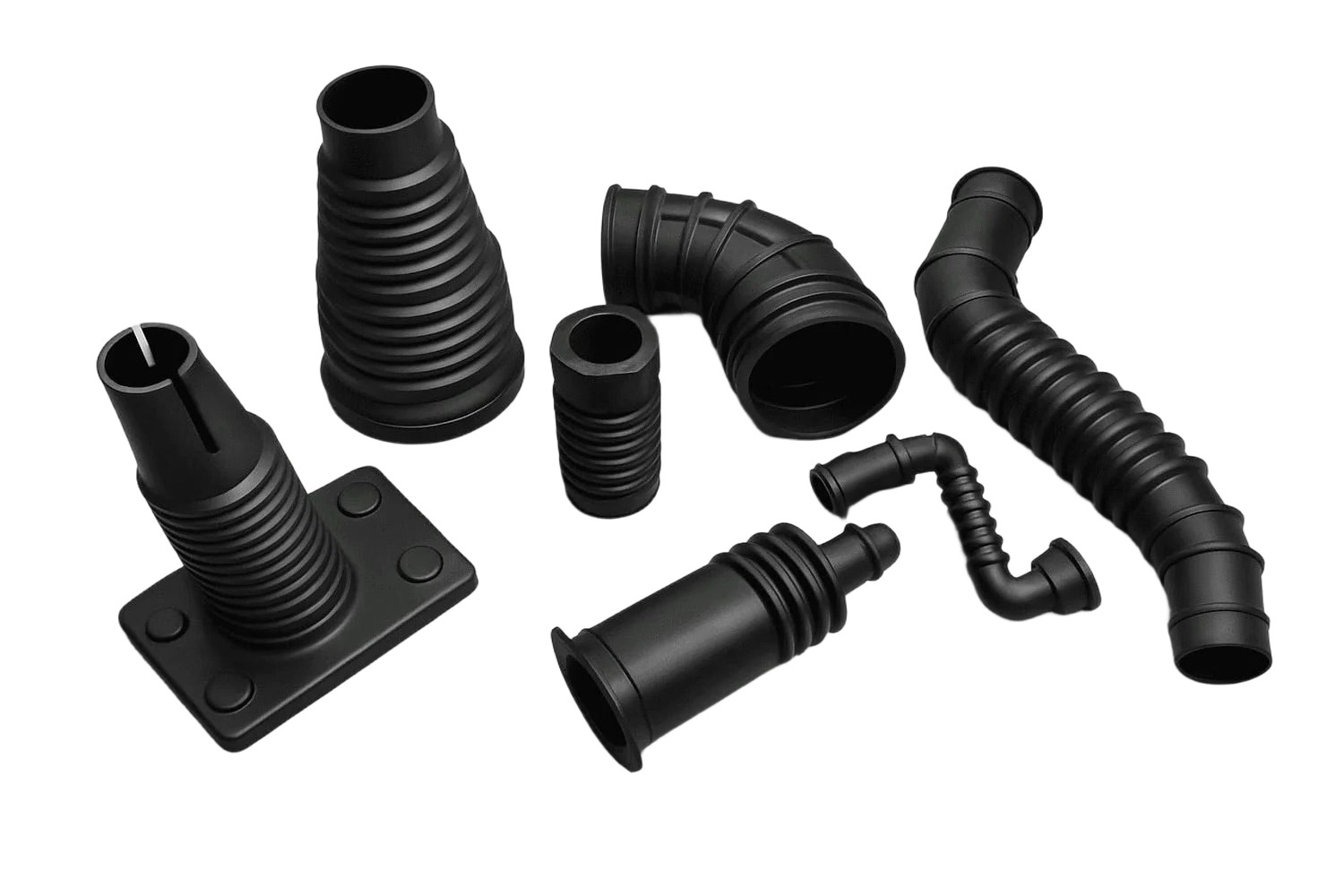

2026.2.9 automotive rubber hoses and bellows manufacturer china OEM

Automotive Rubber Bellows

Overview

In the intricate landscape of modern automotive manufacturing, OEM-grade molded rubber components are indispensable to ensuring vehicle safety, durability, and optimal performance. Among these critical parts, automotive rubber bellows—also commonly referred to as rubber boots or corrugated rubber sleeves—stand out as essential flexible protective and vibration-dampening components. Engineered and manufactured to meet the stringent standards of U.S. automotive OEMs and Tier 1 suppliers, our automotive rubber bellows are precision-molded to deliver consistent performance, long service life, and seamless integration with diverse vehicle architectures, catering to passenger cars, light-duty trucks, heavy-duty commercial vehicles, electric vehicles (EVs), hybrid electric vehicles (HEVs), and specialty automotive applications.
Unlike generic, off-the-shelf rubber bellows, our OEM-focused products are developed through a collaborative engineering process, aligned perfectly with the exact specifications and performance requirements of leading U.S. automotive manufacturers. We recognize that in the automotive industry, even minor deviations in design, material composition, or performance can lead to catastrophic system failures, costly recalls, compromised vehicle safety, and damage to an OEM’s reputation. As such, every unit of our automotive rubber bellows undergoes rigorous testing and strict quality control protocols to ensure full compliance with SAE, ASTM, and OEM-specific standards—making them the preferred choice for automotive assembly lines and OEM-approved replacement parts programs across the United States.
Automotive rubber bellows serve two primary, interconnected roles in vehicle systems: flexible protection and movement compensation. As flexible protective barriers, they shield critical moving components—such as steering racks, drive shafts, constant velocity (CV) joints, ball joints, tie rod ends, suspension components, and electrical wiring harnesses—from harsh environmental contaminants, including dirt, dust, rocks, road salts, moisture, and chemical fluids. Without this robust protection, these sensitive components are prone to corrosion, wear, and premature failure, which can lead to expensive repairs, reduced vehicle lifespan, and even safety hazards.
Equally important, automotive rubber bellows are designed to absorb axial, lateral, and angular movements, as well as dampen vibration generated by the vehicle’s engine, transmission, and chassis during operation. This movement compensation capability reduces stress on connected components, minimizes noise, and prevents premature wear, ensuring the smooth and reliable operation of critical vehicle systems. From the undercarriage to the engine bay, our OEM-grade rubber bellows are engineered to thrive in the most demanding automotive environments—withstanding extreme temperatures, chemical exposure, abrasion, and repeated mechanical stress—supporting the U.S. automotive industry’s relentless pursuit of efficiency, durability, and regulatory compliance.
As the automotive industry evolves toward electrification and advanced driver-assistance systems (ADAS), the role of automotive rubber bellows has become even more critical. EVs and HEVs, for example, require specialized bellows to protect high-voltage wiring harnesses, battery cooling system components, and electric drive unit connections—components that demand enhanced resistance to heat, chemicals, and electromagnetic interference (EMI). Our engineering team continuously innovates to develop rubber bellows that address these evolving OEM needs, ensuring that our products remain at the forefront of automotive technology and performance.

Material Selection

The performance, reliability, and service life of automotive rubber bellows begin with premium material selection—a cornerstone of our OEM-focused manufacturing philosophy. We exclusively utilize high-grade synthetic elastomers, reinforced fabrics (where applicable), and OEM-approved bonding agents that meet or exceed the strict specifications of U.S. automotive OEMs. Each material is carefully selected based on the specific application of the bellows, as different vehicle systems expose components to unique stressors, including extreme temperatures, harsh chemicals, abrasion, and mechanical movement. Below is a detailed breakdown of the primary materials used in our OEM-grade automotive rubber bellows, along with their key characteristics and targeted applications.
Our automotive rubber bellows are crafted from a range of high-performance synthetic elastomers, each engineered to address specific performance requirements. We avoid low-grade natural rubber in nearly all automotive applications, as it lacks the chemical resistance, temperature stability, and durability needed to withstand the harsh under-hood, undercarriage, and chassis environments of modern vehicles—a standard practice in U.S. OEM molded rubber parts manufacturing.
  • EPDM (Ethylene Propylene Diene Monomer): EPDM is the workhorse elastomer for a wide range of OEM automotive rubber bellows applications, particularly those in the engine bay and chassis. Renowned for its exceptional resistance to ozone, UV radiation, and high temperatures (ranging from -40°F to 250°F, or -40°C to 121°C), EPDM also offers excellent resistance to water, coolant, and mild chemicals. Its superior flexibility, low compression set, and excellent weatherability make it ideal for bellows used in air intake systems, steering racks, suspension components, and heater core connections. EPDM is widely used in passenger cars and light-duty trucks, where components are exposed to consistent under-hood heat and environmental elements. Additionally, EPDM’s compatibility with modern coolant formulations (including ethylene glycol and propylene glycol) ensures that bellows used in cooling system applications maintain their integrity and performance over time, preventing coolant leakage and component damage.
  • Silicone Rubber: For high-temperature OEM applications, we utilize high-grade silicone rubber to manufacture automotive rubber bellows that can withstand extreme heat and maintain flexibility. Silicone rubber operates reliably in temperatures ranging from -60°F to 400°F (-51°C to 204°C), making it ideal for bellows used in exhaust systems, turbocharger connections, engine valve covers, and high-temperature electrical wiring harnesses. It also offers excellent electrical insulation properties, making it suitable for bellows used to protect sensitive electrical components in the engine bay, such as EV battery cooling system connections and high-voltage wiring. Silicone rubber is often used in premium OEM applications, including luxury vehicles, high-performance sports cars, and EVs/HEVs, where reliability in extreme temperature conditions is non-negotiable. Its resistance to thermal aging and chemical degradation ensures long service life even in the most demanding under-hood environments.
  • NBR (Nitrile Butadiene Rubber): Also known as Buna-N, NBR is used for automotive rubber bellows applications that require excellent resistance to petroleum-based fluids, oils, and greases. It operates effectively in temperatures ranging from -40°F to 212°F (-40°C to 100°C) and offers good mechanical strength and abrasion resistance. NBR bellows are commonly used in fuel system connections, transmission components, and oil lines, where they protect sensitive parts from oil contamination and mechanical movement. For high-performance OEM applications, such as racing vehicles or heavy-duty trucks, we use hydrogenated NBR (HNBR), which provides enhanced heat resistance (up to 300°F / 149°C) and improved durability, making it suitable for turbocharger oil line bellows and high-pressure fuel system protection.

Characteristics

Our automotive rubber bellows are engineered to deliver consistent, reliable performance across a wide range of operating conditions, meeting or exceeding the strict performance standards set by U.S. automotive OEMs. Every performance attribute is carefully tested and validated to ensure that the bellows integrate seamlessly with the vehicle’s systems and perform as intended throughout their service life—typically 10-15 years or 150,000+ miles, aligning with the expected lifespan of modern vehicles. Below are the key performance characteristics of our OEM-grade automotive rubber bellows:

Temperature Resistance: Automotive rubber bellows operate in extreme temperature ranges, from sub-zero winter conditions (-40°F / -40°C) to scorching under-hood temperatures exceeding 400°F (204°C) for high-temperature applications. Our bellows are engineered with material-specific temperature ratings tailored to their intended use, ensuring that they maintain flexibility, structural integrity, and seal performance across these extreme ranges. For example, EPDM bellows used in suspension systems are rated for -40°F to 250°F (-40°C to 121°C), while silicone and FKM bellows used in exhaust and turbocharger applications can withstand -60°F to 400°F (-51°C to 204°C). This temperature resistance prevents the bellows from cracking, hardening, or becoming brittle in extreme cold, or softening, deforming, or degrading in extreme heat—critical for OEM reliability, as temperature-related failures are a leading cause of warranty claims in the automotive industry.

Flexibility and Movement Compensation: One of the primary functions of automotive rubber bellows is to compensate for axial, lateral, and angular movements generated by vehicle operation—such as suspension articulation, steering movement, drive shaft rotation, and thermal expansion of components. Our bellows are designed with a precision-engineered corrugated structure that allows for maximum flexibility and movement, typically accommodating up to 20% of their length in axial movement, 15° of angular movement, and 10% of their diameter in lateral movement (depending on the application and design). This flexibility ensures that the bellows do not restrict the movement of critical components, while also absorbing stress and preventing damage to connected parts. The corrugated design also helps to dampen vibration, reducing noise transmission to the vehicle cabin and minimizing wear on sensitive components.

Chemical Resistance: Automotive rubber bellows are exposed to a wide range of harsh chemicals, including petroleum-based fluids (gasoline, diesel, engine oil, transmission fluid), coolant (ethylene glycol, propylene glycol), brake fluid, road salts, diesel exhaust fluids (DEF), and corrosive gases (from EGR systems). Our bellows are engineered with materials that offer superior resistance to these chemicals, preventing swelling, softening, hardening, or degradation that can lead to failure. For example, NBR and HNBR bellows resist petroleum-based fluids, EPDM bellows resist coolant and water, FKM bellows resist aggressive chemicals and DEF, and neoprene bellows resist road salts and mild chemicals. This chemical resistance ensures that the bellows maintain their performance and integrity over time, even when exposed to prolonged contact with harsh automotive fluids— a key requirement for OEMs seeking to minimize maintenance costs and maximize vehicle lifespan.

Abrasion and Wear Resistance: Bellows located in the undercarriage, chassis, and engine bay are exposed to significant abrasion from road debris (rocks, dirt, gravel), contact with other vehicle components, and road salts. Our OEM-grade rubber bellows are engineered to withstand this abrasion, featuring thick elastomer walls, reinforced construction (where applicable), and specialized outer coatings (CSM, polyurethane) to minimize wear and tear. For example, suspension bellows and CV joint bellows are manufactured with thicker neoprene or EPDM walls and abrasion-resistant coatings to protect against rocks and road debris, while under-hood bellows are designed with smooth outer surfaces to reduce friction with adjacent components. This abrasion resistance extends the service life of the bellows, reducing the need for premature replacement and lowering overall vehicle maintenance costs— a key benefit for both OEMs and vehicle owners.

Seal Integrity: A reliable, leak-proof seal is critical for automotive rubber bellows, as any gap or leakage can allow contaminants (dirt, moisture, chemicals) to enter and damage sensitive components. Our bellows are precision-molded to ensure tight, consistent seals with mating components—such as steering racks, drive shafts, and fittings. The elastomer materials are formulated to have excellent compression set resistance, meaning they maintain their shape and seal integrity even after years of constant pressure, movement, and thermal cycling. Additionally, our bellows are equipped with OEM-approved mounting collars, flanges, or lip seals that create a secure, leak-proof connection, preventing contaminants from entering and protecting the internal components. Every unit undergoes rigorous leak testing during manufacturing, with 100% of critical bellows (such as those used in brake systems and EV high-voltage applications) tested to ensure no leakage before leaving the factory.

Vibration Damping: Automotive systems generate significant vibration during operation, which can cause noise, wear, and premature failure of critical components. Our rubber bellows are engineered to dampen this vibration, acting as flexible buffers between moving parts and the vehicle’s chassis or body. The elastomer materials and corrugated design absorb vibration energy, reducing its transmission to other components and the vehicle cabin. This vibration damping not only improves ride comfort for passengers but also minimizes wear on connected parts—such as CV joints, steering racks, and electrical connectors—extending their service life and reducing warranty claims for OEMs. For heavy-duty commercial vehicles and high-performance applications, we offer specialized bellows with enhanced vibration-damping properties, ensuring optimal performance even in high-vibration environments.

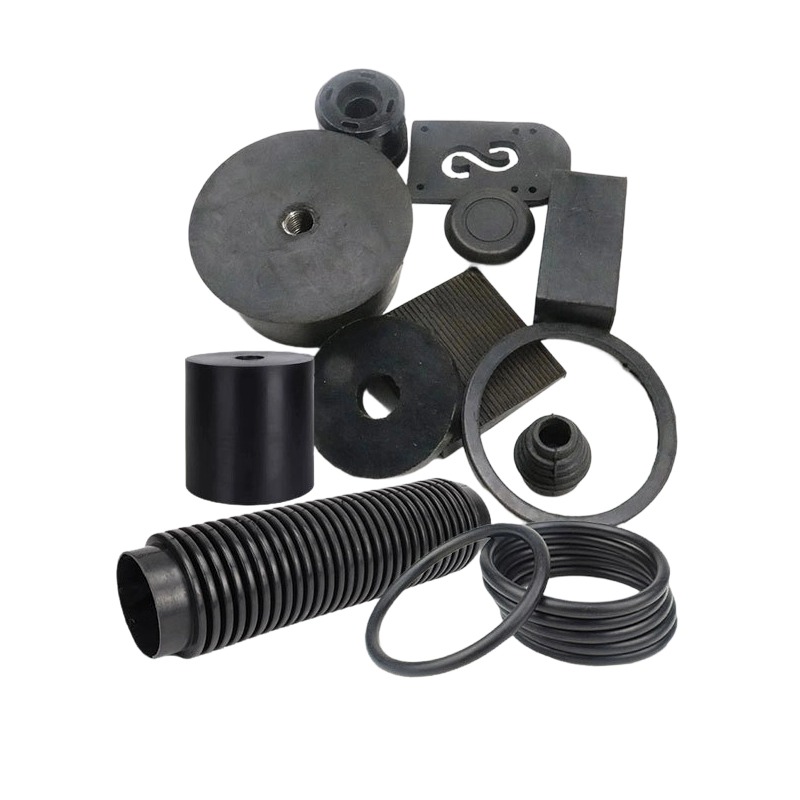

2026.2.9 rubber auto parts gaskets bumpers EPDM ChinaApplications

Our automotive rubber bellows are designed for seamless integration into a wide range of vehicle systems, supporting OEM manufacturing for all types of vehicles sold in the United States. Each bellows is engineered to meet the specific requirements of its application, ensuring compatibility with existing vehicle architectures, compliance with OEM standards, and optimal performance. Below is a detailed breakdown of the key applications for our OEM-grade automotive rubber bellows in U.S. automotive OEMs:

Steering System: The automotive steering system relies on rubber bellows to protect critical components and compensate for steering movement. Our steering system bellows are primarily used to protect steering racks, tie rod ends, and rack-and-pinion assemblies from dirt, moisture, and road salts. Manufactured from EPDM or neoprene (depending on the OEM’s requirements), these bellows are designed to accommodate the full range of steering movement—from full left to full right lock—without restricting performance or tearing. They also dampen vibration generated by the steering system, reducing noise and improving ride comfort. Our steering system bellows meet SAE J528 and OEM-specific standards, ensuring reliable performance and safety. For electric power steering (EPS) systems, we offer specialized bellows that protect the EPS motor and wiring connections, featuring enhanced electrical insulation and heat resistance.

Drivetrain and Transmission Applications: The drivetrain and transmission systems are critical to vehicle performance, and rubber bellows play a key role in protecting their moving components. Our drivetrain bellows include CV joint bellows, drive shaft bellows, and transmission output shaft bellows. CV joint bellows—manufactured from neoprene, HNBR, or FKM—protect the CV joints (which transfer power from the transmission to the wheels) from dirt, debris, and moisture, while also retaining the CV joint’s lubricating grease. These bellows are designed to accommodate the angular movement of the CV joints during suspension articulation and steering, ensuring long CV joint life. Drive shaft bellows, often reinforced with polyester or aramid fiber, protect drive shaft universal joints (U-joints) and slip yokes from contamination and dampen vibration, reducing noise and wear. Transmission output shaft bellows protect the transmission’s output shaft seal from dirt and moisture, preventing fluid leakage and transmission damage.

Suspension System: The suspension system is exposed to significant movement, vibration, and environmental contaminants, making rubber bellows essential for its reliability. Our suspension system bellows are used to protect ball joints, control arm bushings, shock absorbers, and strut assemblies. Manufactured from neoprene or EPDM, these bellows are designed with a thick, abrasion-resistant wall and a flexible corrugated structure to accommodate suspension articulation (up to 10 inches of travel in some heavy-duty applications) while shielding components from rocks, dirt, road salts, and moisture. They also absorb vibration and reduce noise, improving ride comfort and minimizing wear on suspension components. For heavy-duty commercial vehicles, we offer reinforced suspension bellows that can withstand the higher loads and harsher operating conditions associated with truck and bus applications.

Engine Bay: In the engine bay, automotive rubber bellows are used in a variety of applications, primarily to protect components from heat, moisture, and chemical exposure, while also compensating for thermal expansion and movement. Our engine bay bellows include air intake bellows, turbocharger bellows, EGR system bellows, and wiring harness bellows. Air intake bellows—manufactured from EPDM or silicone—connect the air filter housing to the throttle body or intake manifold, compensating for thermal expansion and engine movement while preventing unfiltered air from entering the engine. Turbocharger bellows, made from silicone or FKM, connect the turbocharger to the intercooler or intake manifold, withstanding extreme temperatures (up to 400°F / 204°C) and pressure while accommodating movement. EGR system bellows, made from FKM, protect EGR valves and pipes from corrosive exhaust gases, ensuring compliance with U.S. emissions regulations (EPA, CARB). Wiring harness bellows, made from EPDM or silicone, protect engine bay wiring from heat, moisture, and abrasion, preventing electrical failures.

Brake System Applications: Brake system safety is non-negotiable for U.S. automotive OEMs, and our rubber bellows are engineered to meet the strictest safety standards for brake system applications. Brake system bellows—manufactured from neoprene or EPDM—are used to protect brake line connections, master cylinder components, and caliper slide pins from dirt, moisture, and road salts. These bellows ensure that brake components remain free of corrosion and debris, maintaining consistent brake performance and preventing brake failure. They are designed to accommodate the movement of brake components during braking, while also resisting glycol-based brake fluids (DOT 3/4/5.1) and road chemicals. Our brake system bellows meet SAE J1401 and FMVSS 106 standards, ensuring full compliance with OEM safety requirements, and undergo 100% leak testing to ensure reliability.

Quality Assurance

At our manufacturing facilities, we adhere to the strictest quality control protocols and manufacturing standards used by U.S. automotive OEMs. Our production process is ISO 9001 and IATF 16949 certified—the global benchmarks for automotive quality management—ensuring consistent, reliable production of OEM-grade automotive rubber bellows. We utilize advanced molding technologies, including injection molding, compression molding, and blow molding, to produce bellows with tight tolerances, consistent wall thickness, and precise corrugated designs that meet exact OEM specifications.
Our engineering team works closely with U.S. automotive OEMs from the initial design and prototyping phase through full-scale production. We collaborate to develop custom rubber bellows that align with the OEM’s vehicle architecture, performance requirements, and cost targets. Using advanced computer-aided design (CAD) software and finite element analysis (FEA), we simulate the bellows’ performance under real-world operating conditions—including temperature, movement, pressure, and abrasion—to ensure optimal design and reliability. Prototypes are rigorously tested to validate performance, and any necessary adjustments are made before full-scale production begins.
Our quality assurance process is comprehensive, starting with raw material testing. Every batch of elastomer, reinforcement material, and bonding agent is inspected and tested to ensure compliance with OEM specifications, including material composition, temperature resistance, chemical resistance, tensile strength, and flexibility. Materials that do not meet our high standards are rejected, ensuring that only premium materials are used in production.
During manufacturing, in-process quality control checks are performed at every stage—from material mixing and molding to trimming and assembly. These checks ensure that the bellows meet tight tolerances, consistent wall thickness, and precise corrugated designs. After production, every batch of bellows undergoes rigorous testing, including temperature cycling tests, movement fatigue tests, pressure tests, leak tests, abrasion tests, and chemical resistance tests. Critical applications—such as brake system bellows and EV high-voltage bellows—undergo 100% individual testing to ensure no defects.
We also maintain full traceability for every unit of our automotive rubber bellows, with each unit labeled with a unique serial number that tracks its production batch, raw materials used, and test results. This traceability ensures that in the unlikely event of a quality issue, we can quickly identify and address the problem, minimizing impact on OEMs and vehicle owners.
Additionally, we are committed to continuous improvement, investing in new technologies, equipment, and processes to enhance the quality and performance of our automotive rubber bellows. We stay up-to-date with the latest trends and requirements in the U.S. automotive industry—including electrification, emissions regulations, and lightweighting—to ensure that our products remain at the forefront of OEM-grade rubber components.
Automotive rubber bellows are critical components in modern vehicles, providing essential flexible protection, movement compensation, and vibration damping to ensure vehicle safety, reliability, and performance. Our OEM-grade automotive rubber bellows are engineered and manufactured to meet the strictest standards of automotive OEMs and Tier 1 suppliers, using premium materials, advanced molding technologies, and rigorous quality control protocols.
From steering systems and drivetrains to suspension systems, engine bays, and EV/HEV components, our rubber bellows are designed for seamless integration into diverse vehicle systems, delivering consistent performance, long service life, and optimal reliability. We are committed to collaborating with automotive OEMs to develop custom solutions that address their unique needs, supporting their pursuit of innovation, durability, and customer satisfaction.
With our focus on OEM excellence, premium materials, and rigorous quality assurance, our automotive rubber bellows are the preferred choice for automotive manufacturers seeking to deliver high-quality, reliable vehicles. Whether for passenger cars, heavy-duty trucks, or electric vehicles, we provide the OEM-grade rubber bellows that keep vehicles running safely and efficiently for years to come.
