EPDM Rubber profiles
EPDM Rubber profiles are produced endlessly by extrusion. For this purpose, the unvulcanized rubber mixture is plasticized in extruders and brought into the appropriate cross-sectional geometry by means of attached extrusion tools (mouthpieces) in the extrusion head of the system. The mouthpieces can be adapted as required to produce different profile cross-sections, so that the right geometry can be realized for every application.
The profile is dimensionally stabilized by subsequent vulcanization. Vulcanization in a steam boiler or salt bath is used here, as well as hot air vulcanization, UHF production or IR shock vulcanization. Rubber profiles are used for protection or sealing in vehicle construction, the construction industry and general mechanical engineering, among others.
Individual
In the case of dynamically stressed profile seals, we calculate the necessary contact pressure forces and then adjust them specifically by means of hollow chambers or foam structures. The necessary overlap or the gasket stroke can be numerically optimized by means of FEM analysis. These special designs are supplemented by a wide range of standard profiles.
- full profiles made of one material
- duplex or n‑plex profiles made of several materials or hardnesses
- Foam rubber profiles and soft rubber profiles and their combinations
- Edge protection profiles with and without sealing and covering elements
Finishing techniques
To improve the handling and to facilitate further processing, we offer various finishing options.
- Simplified handling of small parts through kiss-cut punching to the liner
- Unique identification of the components through multicoloured liners and printing
- Partial notching and exact cutting to length to achieve tight bending radii of circumferential seals

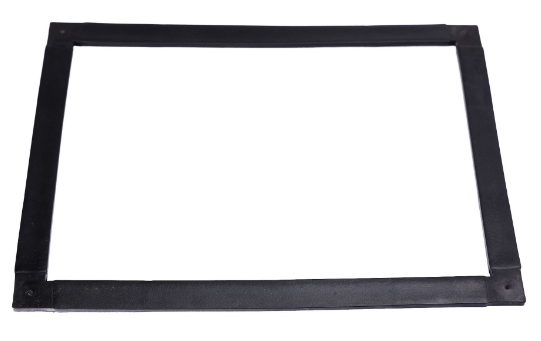

- Injection of mould corners
- Functional surfaces through flocking and bonded coatings
- connection of cut surfaces
Self-adhesive
To simplify the assembly process, profiles can be equipped with simple, self-adhesive assembly aids. These cold-applied adhesive tapes serve, for example, as transport protection, but do not represent a permanent fastening. By using adhesive systems, profiles can also be fixed or bonded permanently and process-safe if required. For example, pull-in grooves in various components can be dispensed with.
Why Choosing Hebei Shida Seal Group?
Hebei Shida Seal Group is a leading manufacturer of Vertical Bulb Trim Seals, Co-extruded Dual Durometer Sponge and Solid Rubber Extrusions with Flexible Wire Core 75001360, rubber strips, rubber seals, extrusions, rubber gaskets, extruded rubber parts and molded rubber parts from Qinghe, Hebei, China.
With combined experience within the industry, we have developed the talent, technical knowledge, engineering expertise and equipment to manufacture Special Profiles meeting the most stringent specifications. Our in-house tool and mould making as well as state-of-the-art development, manufacturing and testing methods ensure a maximum of product quality and reliability.
Capabilities:
- Certified to IATF (international Automotive Task Force) 16949,
- Certified to ISO 14001 and ISO 45001 (Environment, Health and Safety)
- Production area 40,000 m²
- Processing of: EPDM Dense and Sponge, CR, NBR
- 5 continuous vulcanization (microwave + hot air ) extrusion lines
- 2 components extrudable
- 3 components extrudable
- Cutting and punching machines for precise lenghts
- Injection presses for mould corners
- Film vulcanization for corners and rings
Main Products:
- Custom EPDM Rubber Extrusions
- Automotive Weatherstripping, Door Seals, Window Seals
- Edge Trims & Seals,Self-Sealing Weatherstrips
- Window Channels, Flocking and Urethane Slip-coating
- Engineered TPV/TPE Profiles
- Co-extruded Trim Seals (dual durometers with a Metal Core, Segmented Steel or Wire Carrier)
Contact Us:
If your applications require Vertical Bulb Trim Seals, Co-extruded Dual Durometer Sponge and Solid Rubber Extrusions with Flexible Wire Core 75001360, EPDM Trim Seals, Rubber Profiles, Extruded Rubber Gaskets, and Seals, please feel free to contact us. We are committed to supplying our customers with robust rubber components and outstanding services.
