Hebei Shida Seal Group manufactures a wide range of extruded rubber sealing gaskets for industrial cabinets and enclosures, as well as for use on commercial and specialist vehicles. Sealing profiles include self-adhesive, self-grip (clip-on), channel fixing and window types (with expansion insert). Materials includes EPDM, NBR, CR, and PVC. Profiles in neoprene, EPDM, PVC, black nitrile and natural rubber cover traditional expanded closed cell (self-adhesive) foam, through blade and bubble or P type sections, to more complex multi-functional and custom designs.
Standard sealing profiles feature edge protection or low friction designs while the tank band support sections fill a very specific role for trucks and similar vehicles where fuel/water/oil tanks are secured by banding straps. In addition to electrical/electronic enclosures and cabinets, many standard sections are available specifically for applications such as motor vehicles, railway carriages, and off-road trucks and machines such as agricultural equipment and fire trucks. Coaches and motor homes also feature with moulded sections to suit doors, windows and ventilation panels, as well as external storage compartments.
Description

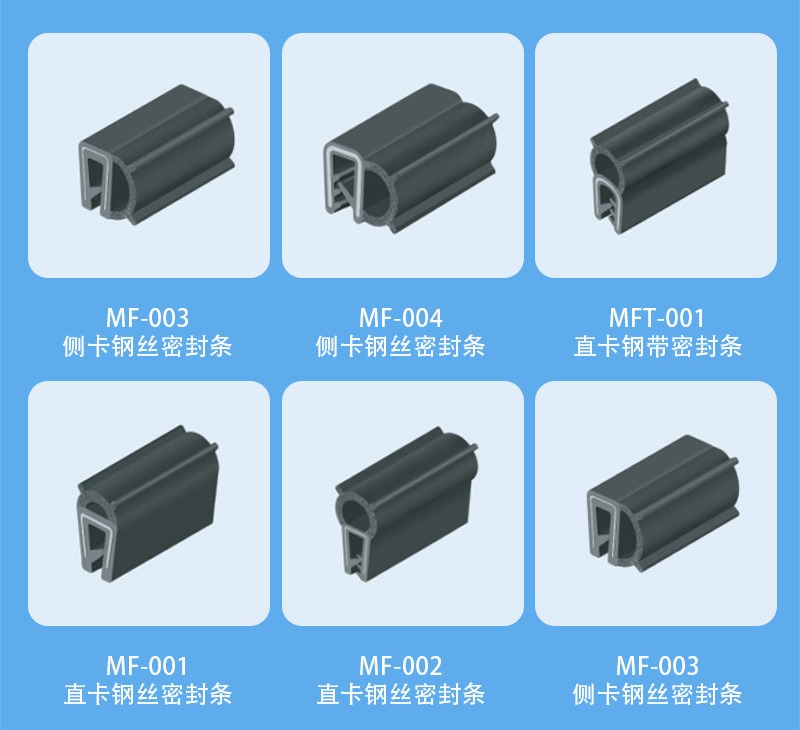

- EPDM Sealing Profiles for Industrial Cabinets and Enclosures

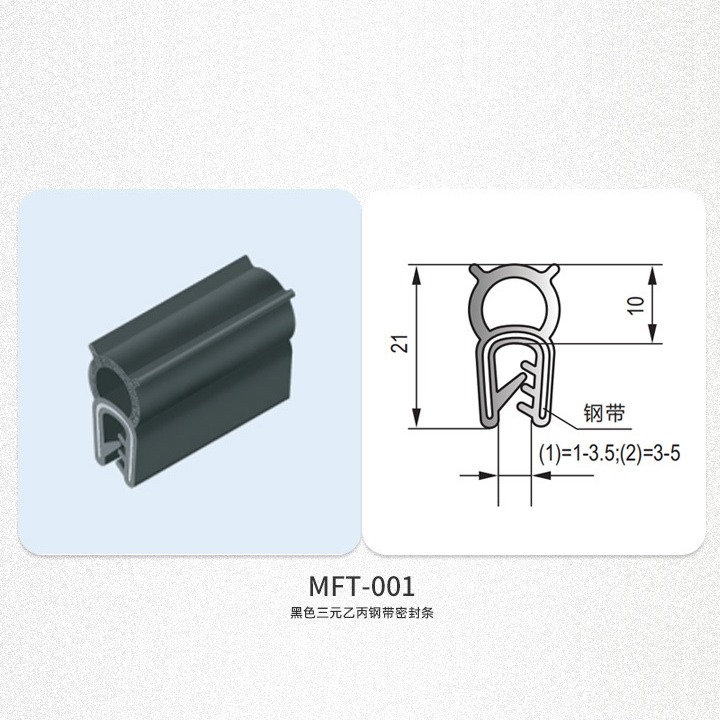

- Bulb Trim Seals for Doors | Door Edge Trim Seal | EPDM Extrusion
- EPDM Rubber Gaskets for Doors of Metal Cabinets and Enclosures
- Self Gripping Gasket with Top / Side Bubble
Material
- Clip-on profiles: EPDM, black
- Carrier: Soft rubber + Steel Spring Core
- Sealing part: Sponge rubber
Manufacturing Capabilities
- Continuous extruded strip
- Hot splice endless ring
- Hot splice vulcanized corners
Feature
- Flexible core helps seam maintain its grip in rounded areas
- Premium material with excellent durability
- Versatile functionality across a broad temperature range
- Resistant to weathering, UV, and Ozone
- Highly adaptable with superior sealing properties
- EPDM rubber construction won’t shrink, crack, or fade over time
Application
- Control Cabinet Doors and Windows
- Automotive Door, Body, Roof Line, Trunk, Cowl
- Food/drink containers
- Sealing applications
- Edge trimming
- Gap filling
- Construction industries
- Electronic applications
- Marine applications
Types of Gaskets
Solid Rubber Gaskets
- Description: Made from solid rubber materials like EPDM, neoprene, or silicone, these gaskets provide excellent sealing properties.
- Applications: Used in electrical enclosures, industrial cabinets, and outdoor equipment where a high degree of sealing is required.
- Material Options: EPDM: Offers excellent resistance to weather, ozone, and UV radiation; suitable for outdoor applications. Neoprene: Resistant to oils, chemicals, and abrasion; suitable for industrial environments. Silicone: Provides excellent temperature resistance (both high and low) and is ideal for environments with extreme temperatures.
- Features: Durable, resistant to aging and environmental factors, provides a reliable seal against dust, water, and air.
Foam Rubber Gaskets
- Description: Made from closed-cell foam materials such as EPDM, neoprene, or polyurethane. They are compressible and provide a soft, cushioned seal.
- Applications: Commonly used in indoor metal cabinets, control panels, and equipment enclosures where a softer seal is needed.
- Material Options:EPDM Foam: Good weather resistance and compressibility, suitable for outdoor use. Neoprene Foam: Resists oils and chemicals, used in industrial environments.
Features: Excellent compressibility, provides a softer seal, and reduces noise and vibration.
Extruded Rubber Gaskets
- Description: Manufactured through an extrusion process to form specific profiles or shapes that fit into grooves or channels in metal cabinets.
- Applications: Widely used in custom cabinets, electrical enclosures, HVAC systems, and transportation equipment where specific sealing profiles are needed.
- Material Options: Typically made from EPDM, neoprene, or silicone.
- Features: Customizable shapes and profiles, good weather resistance, and durability.
Adhesive-Backed Gaskets
- Description: Gaskets with a peel-and-stick adhesive backing for easy installation. They are typically foam or rubber-based.
- Applications: Used in applications where quick and easy installation is required, such as in cabinets, enclosures, and doors.
- Material Options: EPDM foam, neoprene foam, silicone, and PVC foam.
- Features: Easy to apply, suitable for irregular surfaces, provides good adhesion and sealing properties.
Clip-On Gaskets
- Description: Gaskets that have a metal or plastic carrier with a flexible sealing lip. They clip onto the edge of a cabinet door or frame to provide a tight seal.
- Applications: Used in enclosures, access panels, and equipment doors where a secure, clip-on seal is needed.
- Material Options: EPDM, neoprene, or PVC for the sealing lip, with metal or plastic carriers.
- Features: Provides a secure, firm seal, easy to install without adhesives, suitable for removable panels.
About Us
Hebei Shida Seal Group is proud to offer a comprehensive range of premium quality Bulb Trim Seals for Doors, 7203-13 Self Gripping Side Bubble Gasket, 34009104001 Bubble Gasket Top 1.0 mm 3.0 mm EPDM, Self Gripping Gasket Top Bubble, Sponge Rubber EPDM Gasketing Edge Protection Profile Self Grip, Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black, flame-retardant push-on seal with bulb on top, co-extruded trim seals, push-on rubber seals, bulb seals weatherstripping, and custom EPDM rubber seals.
We have developed the talent, technical knowledge, engineering expertise and equipment to manufacture trim seals meeting the most stringent specifications. Our in-house tool and mould making as well as state-of-the-art development, manufacturing and testing methods ensure a maximum of product quality and reliability.
Capabilities
- Certified to IATF (International Automotive Task Force) 16949
- Certified to ISO 14001 and ISO 45001 (Environment, Health and Safety)
- Production area 40,000 m²
- Processing of: EPDM Dense and Sponge, CR, NBR
- 5 continuous vulcanization (microwave + hot air ) extrusion lines
- 2 components extrudable
- 3 components extrudable
- Cutting and punching machines for precise lenghts
- Injection presses for mould corners
- Vulcanised Corners and rings
Main Products
- Custom EPDM Trim Seals
- UL 94 HB, V-0 Rated Rubber Profiles and Gaskets
- Clip-on Sealing Profiles EPDM
- Self-gripping Gaskets Top Bubble
- Automotive Weatherstripping, Door Seals, Window Seals
- PVC Edge Trims & Seals,Self-Sealing Weatherstrips
- Window Channels, Flocking and Urethane Slip-coating
- Co-extruded Trim Seals (dual durometers with a Metal Core, Segmented Steel or Wire Carrier)
Contact Us
If your applications require EPDM Sealing Profiles for Industrial Cabinets and Enclosures, Bulb Trim Seals for Doors, Self Gripping Side Bubble Gasket for Enclosures and Electrical Cabinets, please feel free to contact us. We are committed to supplying our customers with robust rubber components and outstanding services.
